Biometric technology at your fingertips

Zwipe is the first contactless card with full on-card fingerprint scanning and matching functionality. No external databases, all personal data remains on the card. Only the owner can activate the card, which then sends standard signals to the iSafePro 360 Access Control system for authentication.

The fingerprint data is captured by the on-card fingerprint scanner and is thereafter stored only inside the card. All fingerprint related processes and matching is done on the card, and no exchange of data is conducted with external systems. When a positive match has occurred, Zwipe will activate encrypted communication with the lock or reader, In the same way as regular contactless cards.

If a perpetrator finds or steals the card, Zwipe will not work, as only the owner can activate the card communication. Therefore, lost or stolen cards are not a threat to the user or a source of worry. Zwipe can be used for whole installations, or for specific high security users in your system, while regular users have cards and FOBs.

The Zwipe card allows you to implement a full biometric fingerprint authentication solution to your system, without the need to change your reader/lock infrastructure, and without the need for the access control manager to handle sensitive fingerprint data, as those data are stored only on the Zwipe cards.

As the complete fingerprint process is done on the card, the only requirement to your infrastructure of locks and readers is that they are ISO 14443 Desfire EV1 or Mifare Classic compatible. Implementing Zwipe Access is therefore a fast and efficient way to introduce biometric security to your organization.

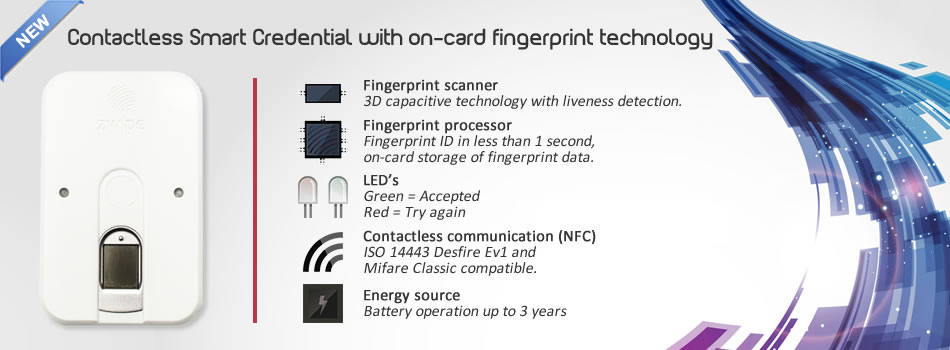

  • On-card fingerprint scanner with 3D capacitive technology
  • Universal compatibility wih all ISO 14443 readers
  • Secure template management, the fingerprint never leaves the card
  • Unique to the user, only the owner can activate the card
  • Quickly reads in less than one second
  • Fingerprint data is stored on the card, not in any external database
  • Providing an easy and fast biometric upgrade path for existing access control systems
  • Durable, strong and resistant to cracking and breaking

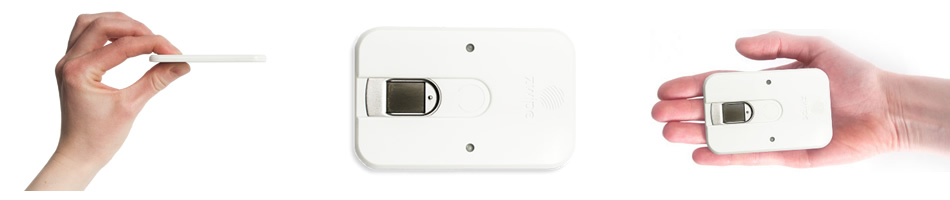

  • Dimensions: 8.5cm x 5.4cm x 0.5cm
  • Weight: 21 grams
  • Frequency: 13.56MHz
  • Operating temperature: -20°C to +40°C
  • Construction: Plastic (casing), Cu (plating), FR4 (fiberglass)
  • Warranty: 3 years
Zwipe Brochure

iSafe Pro Visor 360 - Supervision and access management software

iSafe Pro VISOR 360 latest generation supervision and access management software is the tool which allows you to control access within your structure with complete flexibility.

iSafe Pro VISOR 360 access management software is the most powerful Open Platform software for security. Our open concept gives the installers or clients the ability to choose which reader type technology they would like to use and not be locked into a specific type of reader or credential for a specific access control solution. With iSafe Pro 360, you can use any MIFARE 13.56 Mhz or Prox 125Khz reader or credential. In addtion, you can choose to use both technologies simultaneously.

Equipped with many user assistance features and capable of managing up to 840 doors. Intuitive and ergonomic, it is very simple to use and easy to install. Visor 360 software allows you to view one or more sites and combines interactivity and technology to guarantee optimum access control.

iSafe Pro 360 has been fully integrated with Assa abloy's APERIO wireless locks protocol to deliver wireless capabilities to our online real-time access control solution. You can now manage APERIO wireless locks to communicate back and forth with our iSafe Pro 360 central unit, wirelessly.

  • Management of 1 to 840 doors
  • Compatibility: Windows 7, XP, Vista
  • Access or SQL Server database configurable at the time of creation of the site
  • Automatic detection of control stations connected
  • Software customization by creation of shortcuts for the most commonly used functions
  • Badge printer management
  • Biometrics management
  • Data import
  • Elevator management with restricted access per floor
  • Unlimited manager profiles
  • Overview of site(s) with real-time status of door inputs/outputs and readers
  • Active mapping
  • Configurable listings, exports for printing and /or sending by E-mail
  • Time and attendance
  • Ergonomic customisable software
  • Voice messages
  • Open platform
iSafe Pro 360 Brochure iSafe Pro 360 Display Panel iSafe Visor 360 User Manual

iSafe Pro 360 Verso-IP Central unit

Our isafePro 360 Verso-IP dual-processor central access control station with redundancy function guarantees you optimum fault-free security.

Equipped with an RS485 extension bus, it allows you to manage up to 42 doors by adding V-EXT4 extension modules and up to 840 doors in total. Its native TCP/IP connection allows you to access it from any computer connected to the network both inside your company and outside via the internet. In addition, on the same Bus, you can add V-EXTIO modules for elevator and automation management.

  • New-generation Dual processor
  • 15000 Identifiers, 15000 events
  • Isolated RS485 extension bus
  • Native TCP/IP
  • Anti-passback and anti time back and transit delay on all readers
  • Power supply: 12VDC
  • Consumption: 300 mA
  • 3.5A CRT relay outputs
  • 8 NO/NC inputs
  • 3 transistorised outputs
  • 10/100 Mbps TCP/IP
  • Flash memory module
  • Biometric management
  • 128 time slots
  • 64 automated systems
iSafe Pro 360 Brochure iSafe Pro 360 Display Panel iSafe 360 Verso-IP Manual iSafe 360 V-EXT4 Manual iSafe 360 V-EXTIO Manual
