iSafe Pro 360 - Innovation and know how

Immotec's approach marks the beginning of a new era for access control. It is becoming SIMPLE, FUNCTIONAL and ever more RELIABLE.

Access control solutions have rapidly become an integral part of the corporate world, becoming so widespread that they have now begun to be used by private individuals. However, their modes of use need to change: Today, a fail-safe security solution must be simple and adapted to the environment in which it is used, because a tailor-made answer combined with user comfort is the best guarantee of the optimum daily security.

Digitouch Mini - High Security Biometric Reader

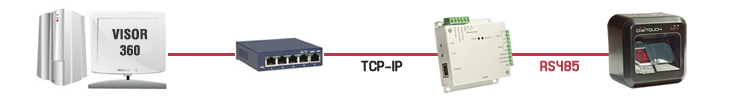

DIGITOUCH MINI is a biometric fingerprint reader connected to a TCP/IP control module with two relays (Door and Alarm), connected by a secured RS485 connection. It is equiped with an infrared finger sensor and colored LEDs (blue, red, green) which indicate the status of the door and alarms.

The iSafePro 360 Biometric Mini reader is IP65 and ideal for outdoor use and waterproof. It is equipped with a TCP/IP RS485 central control unit, programmable via iSafePro 360 Visor Software.

Equipped with a MIFARE RFID reader, it can recognise users in 1-to-1 or 1-to-many mode. Capable of recognising up to 3000 fingerprints and up to 15,000 cards.

  • Up to 15000 users in card mode + fingerprint mode
  • 2 readers connectable on one door
  • Integrated Mifare reader
  • Enrolment phase shorter than 5 seconds
  • Identification phase shorter than 1 second
  • Adjustable wrong acceptations rate
  • Control relay 1A 12/24V/release/suction
  • Integrated alarm control relay
  • Door contact connector
  • Contact entry on condition
  • Push button entry
  • Input for power supply test
  • Input for self protection against tampering
  • 128 time-slots and 32 bank holidays period
  • Indice of protection of the reader : IP65
  • 1024 access groups
  • 64 automations
  • Native TCP/IP
  • 3 security levels
  • 12Vdc supply
  • 600mA consumption
  • Reader operating temperature: -10°C to +50°C
  • Dampness resistance of the reader: 0 to 80%
  • Dimensions of the biometric reader (LxHxD): 85x86x56 mm
  • Dimensions of the TCP/IP Control module(LxHxD): 93x94x29 mm
Digitouch MINI Brochure Digitouch Display Panel

Digitouch - High Security Biometric Reader

DIGITOUCH is a biometric reader solution geared towards automated building management sites, using finger print recognition to enhance security within their environment.

Its interface with a 2.8" colour touch screen allows rapid local configuration, or can be centralised by iSafe Pro 360 through TCP/IP.

Equipped with a MIFARE RFID reader, it can recognise users in 1-to-1 or 1-to-many mode. Capable of recognising up to 500 users (up to 2 fingerprints per user).

  • Up to 500 users (2 fingerprints per user) or 15,000 through iSafe Pro Visor 360
  • Last 15,000 events recorded
  • 128 time slots
  • EEPROM and FLASH memory
  • Optical biometric sensor
  • Enrolment time of 5 seconds or less
  • Identification time of 1 second or less
  • Adjustable security level
  • Size of recognition zone: 14 x 22 mm
  • Integrated 3A/250V relay for opening control management
  • Push button input
  • Door contact input (monitoring of door status)
  • Conditional input (monitoring of intrusion system status)
  • Automated system open collector output (e.g. activation/deactivation of an intrusion system)
  • Self-protection output (gives the status of the self-protection switch integrated in the reader)
  • 2.8" touch screen for local configuration
  • Ethernet connection for connecting to the network (configuration by iSafePro 360 Visor software)
  • RS485 BUS for V-EXTIO input/output card management (e.g. for Elevator management)
  • WIEGAND outputs for central access control stations
  • Power supply: 12 / 24 volts
  • Consumption: 500 mA
  • Dimensions: 170 x 82 x 90 mm
  • Operating temperature: -10 C to +50 C
  • Relative humidity: 0 to 95 %
  • Protection level: IP54
Digitouch Brochure Digitouch Display Panel

iSafe Pro Visor 360 - Supervision and access management software

iSafe Pro VISOR 360 latest generation supervision and access management software is the tool which allows you to control access within your structure with complete flexibility.

iSafe Pro VISOR 360 access management software is the most powerful Open Platform software for security. Our open concept gives the installers or clients the ability to choose which reader type technology they would like to use and not be locked into a specific type of reader or credential for a specific access control solution. With iSafe Pro 360, you can use any MIFARE 13.56 Mhz or Prox 125Khz reader or credential. In addtion, you can choose to use both technologies simultaneously.

Equipped with many user assistance features and capable of managing up to 840 doors. Intuitive and ergonomic, it is very simple to use and easy to install. Visor 360 software allows you to view one or more sites and combines interactivity and technology to guarantee optimum access control.

iSafe Pro 360 has been fully integrated with Assa abloy's APERIO wireless locks protocol to deliver wireless capabilities to our online real-time access control solution. You can now manage APERIO wireless locks to communicate back and forth with our iSafe Pro 360 central unit, wirelessly.

  • Management of 1 to 840 doors
  • Compatibility: Windows 7, XP, Vista
  • Access or SQL Server database configurable at the time of creation of the site
  • Automatic detection of control stations connected
  • Software customization by creation of shortcuts for the most commonly used functions
  • Badge printer management
  • Biometrics management
  • Data import
  • Elevator management with restricted access per floor
  • Unlimited manager profiles
  • Overview of site(s) with real-time status of door inputs/outputs and readers
  • Active mapping
  • Configurable listings, exports for printing and /or sending by E-mail
  • Time and attendance
  • Ergonomic customisable software
  • Voice messages
  • Open platform
iSafe Pro 360 Brochure iSafe Pro 360 Display Panel iSafe Visor 360 User Manual

iSafe Pro 360 Verso-IP Central unit

Our isafePro 360 Verso-IP dual-processor central access control station with redundancy function guarantees you optimum fault-free security.

Equipped with an RS485 extension bus, it allows you to manage up to 42 doors by adding V-EXT4 extension modules and up to 840 doors in total. Its native TCP/IP connection allows you to access it from any computer connected to the network both inside your company and outside via the internet. In addition, on the same Bus, you can add V-EXTIO modules for elevator and automation management.

  • New-generation Dual processor
  • 15000 Identifiers, 15000 events
  • Isolated RS485 extension bus
  • Native TCP/IP
  • Anti-passback and anti time back and transit delay on all readers
  • Power supply: 12VDC
  • Consumption: 300 mA
  • 3.5A CRT relay outputs
  • 8 NO/NC inputs
  • 3 transistorised outputs
  • 10/100 Mbps TCP/IP
  • Flash memory module
  • Biometric management
  • 128 time slots
  • 64 automated systems
iSafe Pro 360 Brochure iSafe Pro 360 Display Panel iSafe 360 Verso-IP Manual iSafe 360 V-EXT4 Manual iSafe 360 V-EXTIO Manual
